One Phase™ Sampler OPS

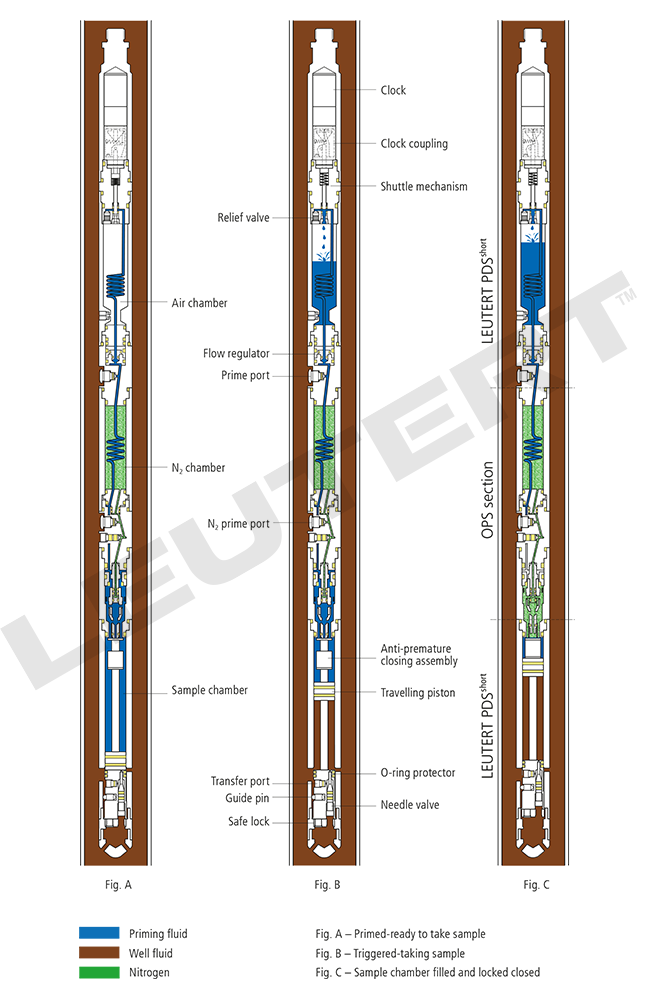

The Leutert Positive Displacement Downhole Sampler provides customers around the world with representative fluid samples. The collected fluid can be transferred to a piston type sample cylinder on site without using mercury. A modified version of the Positive Displacement Downhole Sampler, the One Phase™ Sampler OPS, allows the downhole sample to be pressurized beyond reservoir pressure after it has been withdrawn from the reservoir. This compensates for any temperature-induced pressure drop and keeps the sample in a single phase as sampler is brought back to the surface. The unaltered sample requires no recombination before transfer and sample transfer takes only minutes instead of hours.
Features
- Shortest sampler of its kind available in the market
- Confirmed sample volume (600 cm³)
- Maintaining the sample in single phase
- Less seals due to reduction of nipples
- Mercury-free transfer to shipping bottle
- Adjustable sampling duration
- Positive locking after tool closure
- Ability to validate sample in sample chamber
| Volume: | 600 cm³ |
| Volume N2-chamber: | 400 cm³ |
| Max. operating pressure: | 15,000 psi (1,035 bar) |
| Test pressure: | 22,500 psi (1,550 bar) |
| Max. operating temperature: | 360 °F (180 °C) |
| Length: | 15.2 ft (4,632 mm) |
| Diameter: | 1-11/16“ (43 mm) |
| Weight: | 68 lbs (31 kg) |
| Material: | Seamless Stainless Steel according to NACE MR-01-75 Bronze Alloy |
